Advanced Multimodal Microscopy

Systems and Solutions

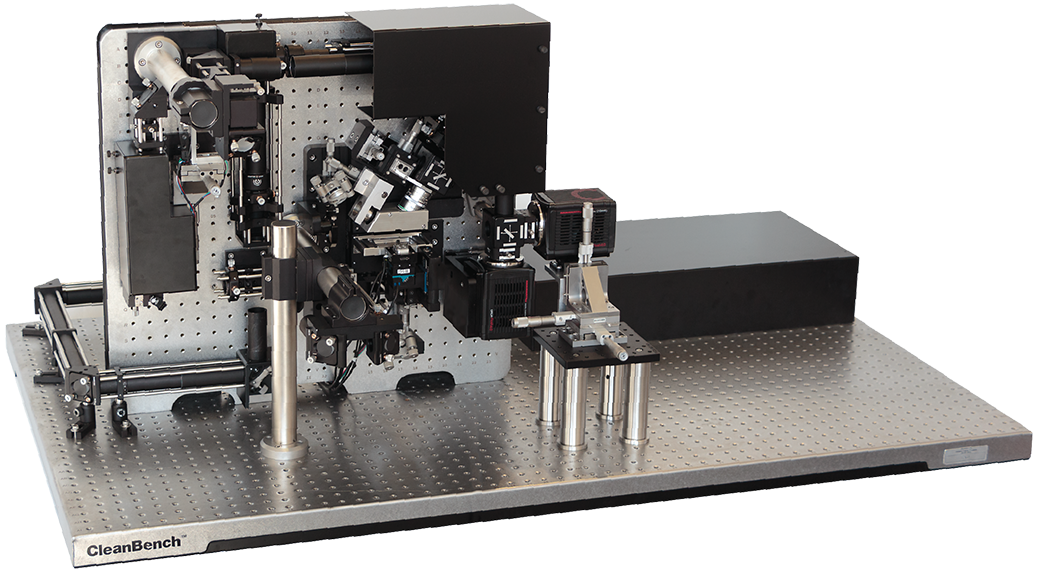

Lattice LightSheet

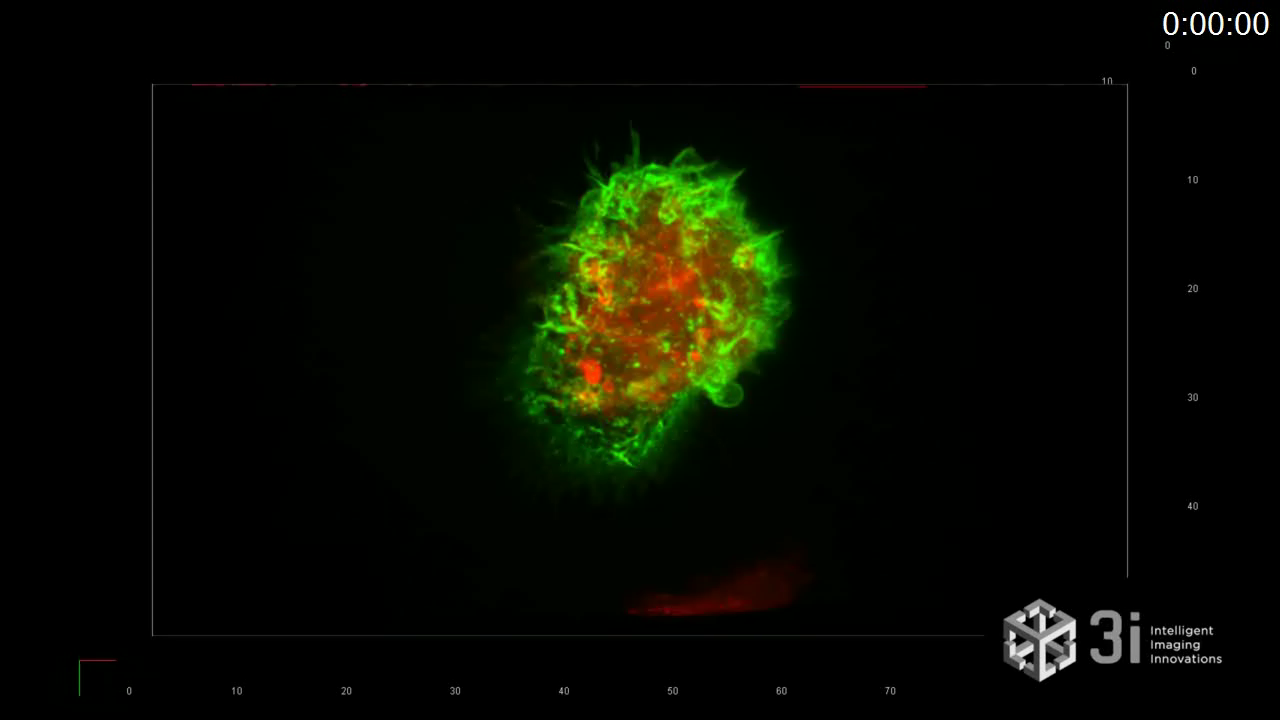

HeLa cells transfected with GFP-Lifeact (488nm) to visualize actin dynamics and stained with DiL (561nm red)(Thermo) to visualize membrane dynamics.

Courtesy James Springfield, Institute for Molecular Bioscience (IMB) at the University of Queensland

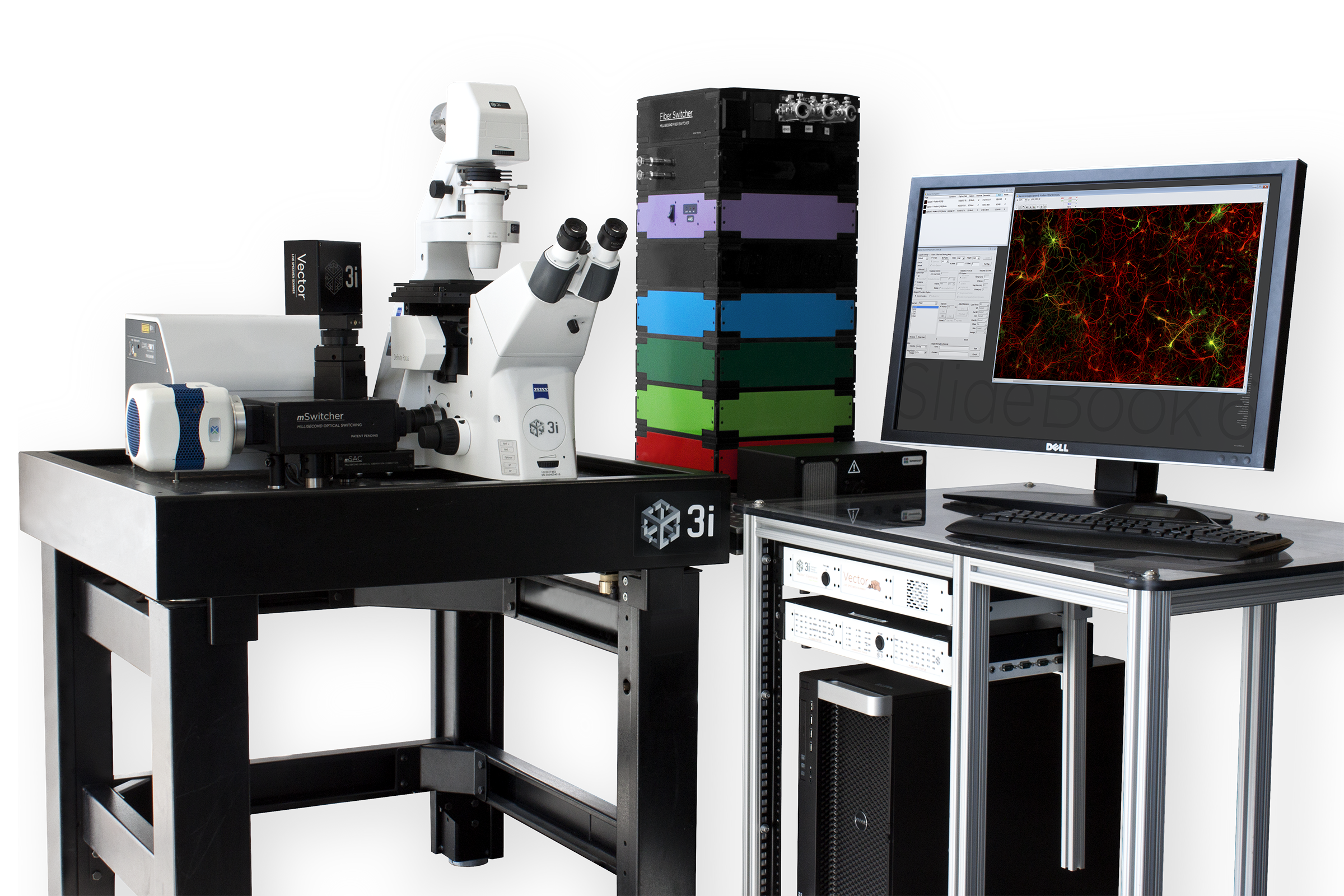

Marianas

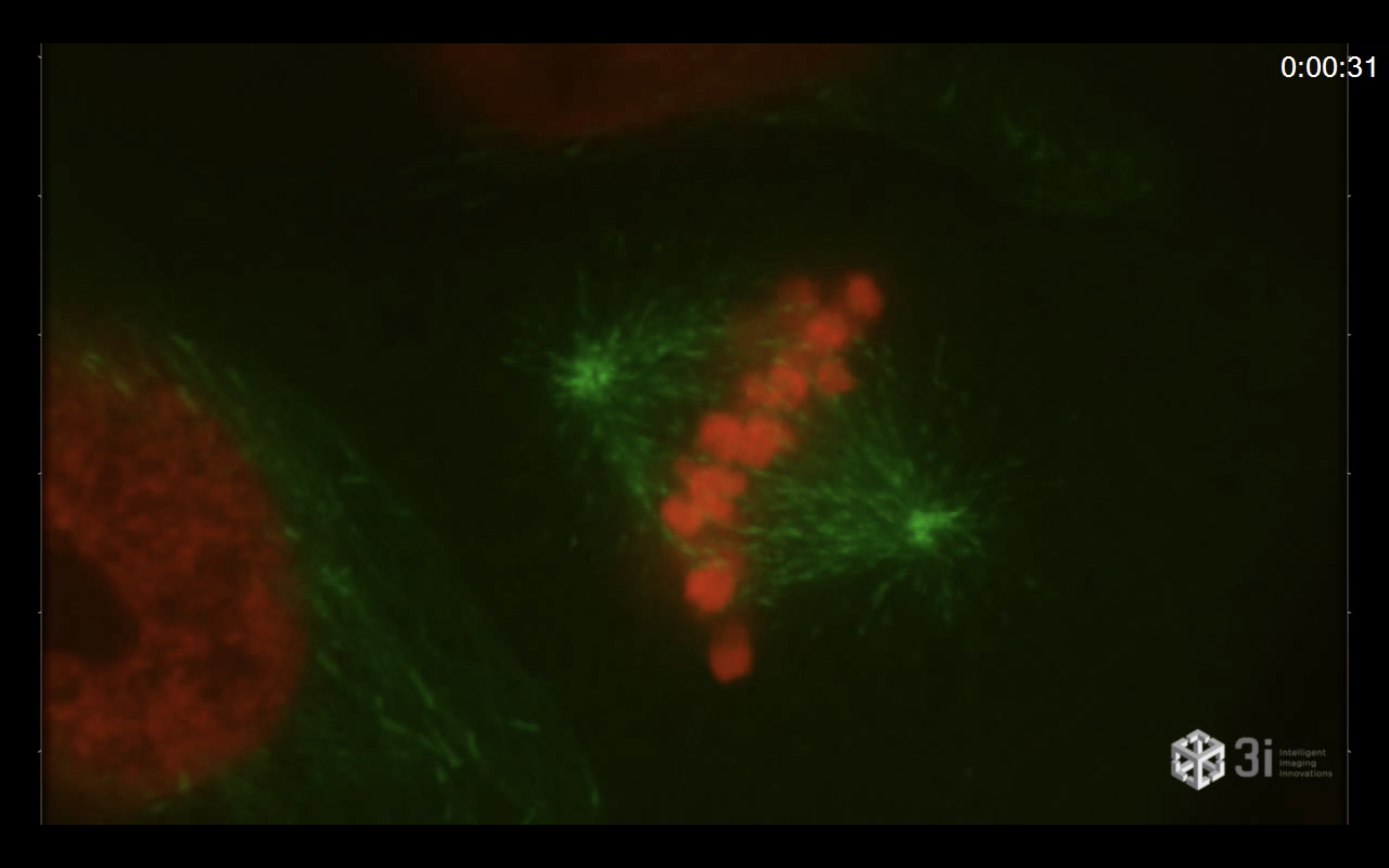

Cell Division

Captured using 3i Marianas and CSU-W1 SoRa

Marianas LightSheet

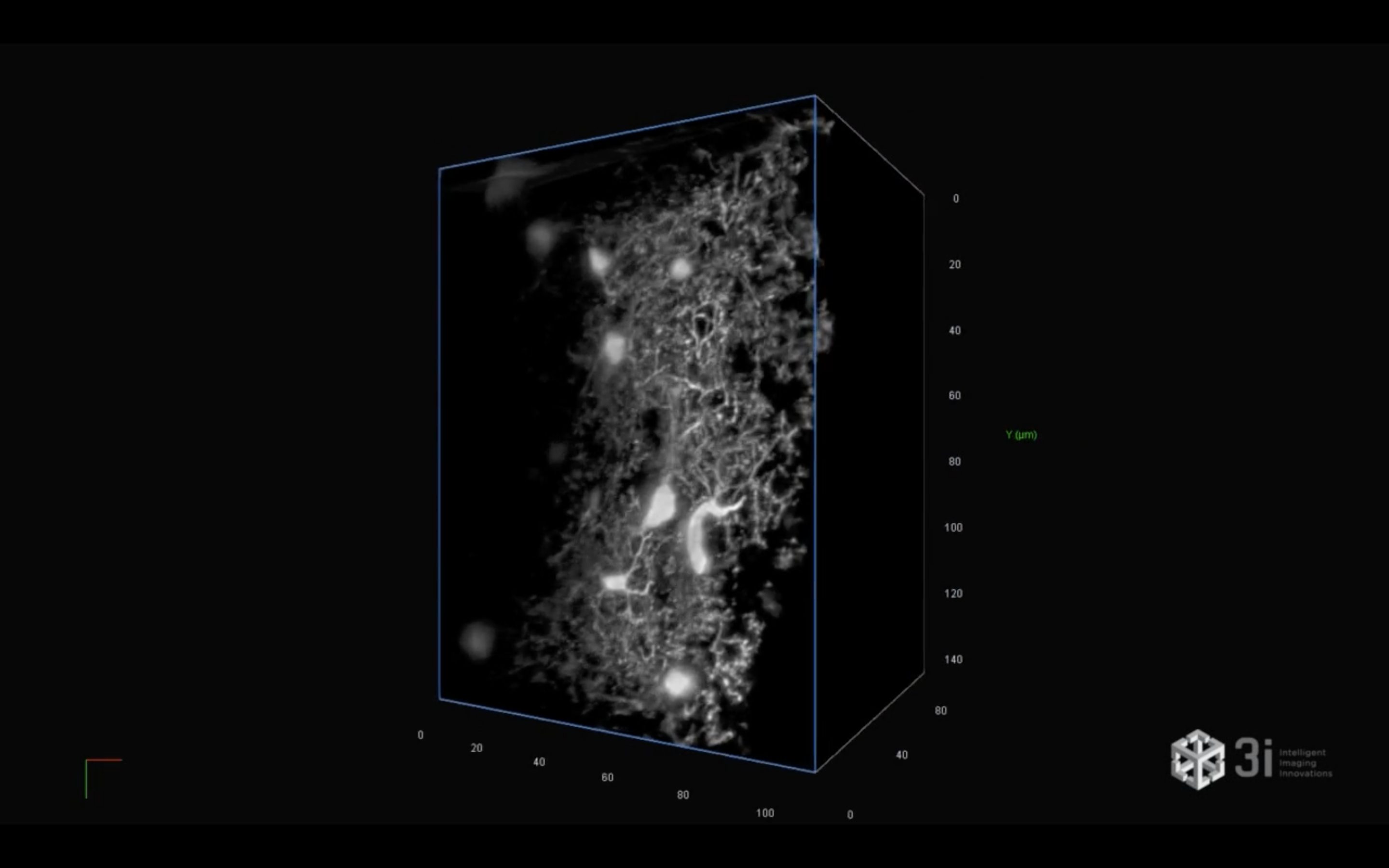

Microglia

Courtesy of Dr. S. Okabe & Dr. S. Tanaka, Department of Cellular Neurobiology, University of Tokyo

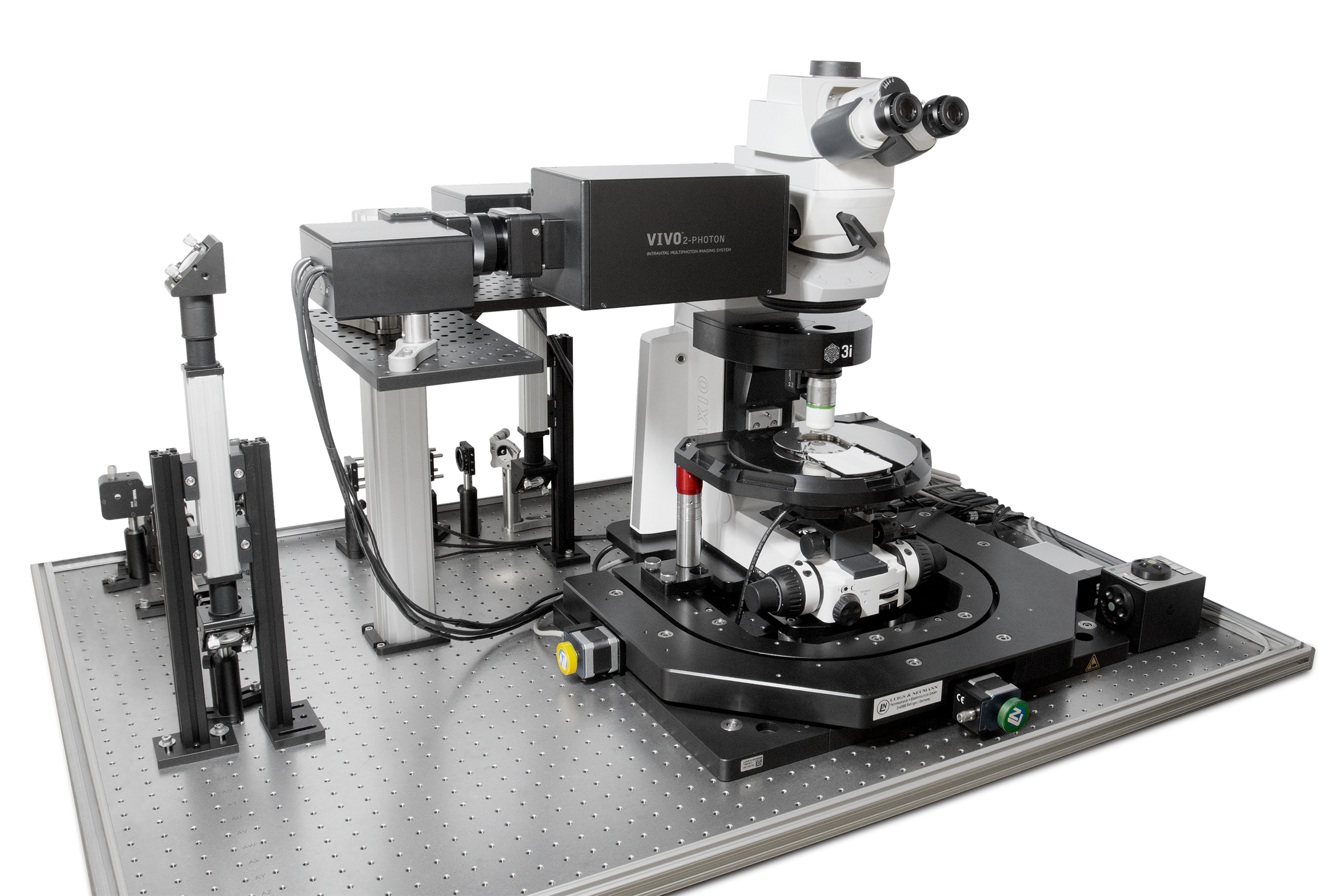

VIVO Multiphoton

Two- and three-photon microscopy of the corpus callosum in a 6-week old transgenic mouse which specifically labels oligodendrocytes (Mobp-EGFP).

Images courtesy of Drs. Ethan Hughes, Emily Gibson, and Diego Restrepo at the University of Colorado Anschutz Medical Campus.

VIVO

Movie of neutrophil and platelets in the inflamed cremasteric venules of a WT mouse, 3h after local injection of TNFa. Cells are labeled by injection of low amounts of antibodies anti-Ly6G conjugated to DyLight649, anti-CD41 conjugated to PE and anti-CD62P conjugated to FITC. The movie shows the dynamic capture and release of platelets (red) by a crawling neutrophil (white), some of which are activated as indicated by the expression of CD62P (green).

Courtesy of Dr. Vinatha Sreeramkumar & Dr. Andrés Hidalgo (Centro Nacional de Investigaciones Cardiovasculares).

Spinning Disk Confocal

TIRF

CSU-X1

Spinning disk confocal with single- or dual- camera options and up to 6-position filter wheel for very high-speed 3D imaging (up to 10,000rpm/2,000fps).

CSU-W1

Double-disk design with motorized bypass and large field of view, single- or dual-camera options and up to 10-position filter wheel for high speed 3D imaging.

CSU-W1 SoRa

CSU-W1 SoRa (Super-Resolution via Optical Re-Assignment) enables easy-to-use super-resolution imaging that “just works”.

VectorTIRF

Motorized spinning X,Y TIRF system for large-field, even TIRF illumination

Photomanipulation

Phasor

Computer-generated holography system for photomanipulation via shapes, hand-drawn regions, and diffraction-limited spots in multiple 3D locations.

Vector

Diffraction limited high speed X,Y scanner for line and ROI interest scanning. Enables rapid direction of all photomanipulation including laser injury, uncaging, activation and bleaching.

Ablate!

Attenuatable 355nm or 532nm pulse laser (>60µJ pulses at 200Hz) capable of inflicting localized damage to a diffraction-limited spot in intracellular structures for precise laser ablation and laser wounding.

Lasers, Optics and Electronics

LaserStack

Modular laser light source with up to six (6) customizable solid state diode lasers and four (4) fiber optic outputs with sub-millisecond switching and on/off times.

mSwitcher

Optical path selector with rapid 1ms selection of up to three (3) optical output (or input) paths for one input (or output) path.

mSAC

Motorized, easy-to-use spherical aberration correction for mSwitcher.

TTL

TTL Synchronization (TTL Sync) provides sophisticated, reliable electronic control of carefully timed devices in a microscopy system with a combination of custom-designed TTL electronics and SlideBook software.
