Advanced Instrumentation for Photomanipulation

Total Internal Reflection Fluorescence and Photomanipulation Module

Vector3 is a motorized, spinning TIRF illuminator with three key imaging modalities: TIRF, photomanipulation and widefield epifluorescence. Intelligent beam steering and optical design allow for all three imaging modes to be combined in one compact device. Vector3 offers an expansive TIRF field of view (FN20) designed for modern sCMOS cameras. A motorized scan lens corrects for sample height variation and ensures ideal TIRF illumination and photomanipulation spot size across the visible spectrum.

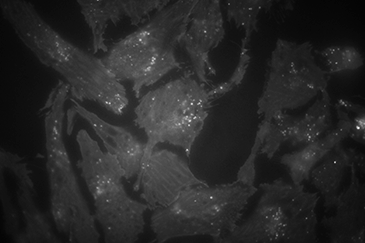

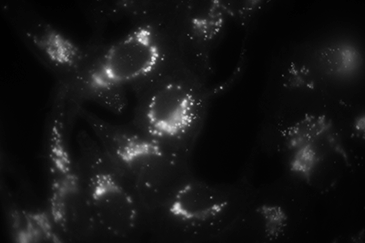

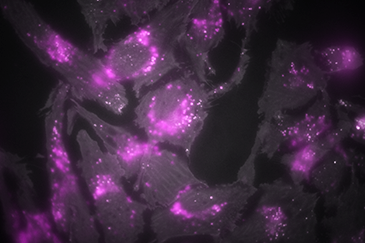

Comparison between TIRF (left), wide field episode-fluorescence (middle) and a composite of both (right). When in TIRF, only the bottom of the cells are visualized, leading to a large increase in signal to noise of the membrane and organelles interacting with the membrane.

All Optical Electrophysiology

Nouveau Phasor is designed for 3D 2-photon stimulation of neurons in vivo. Four distinct modalities enable flexible optogenetics studies involving organisms from C. elegans and Drosophila to zebrafish, mice and larger mammalian species. Nouveau Phasor is able to simultaneously illuminate multiple regions in a 3D volume with the use of SLM-based computer-generated holography.

awake animal behavior
2 minute 15 second recording of mouse brain calcium activity in vivo via cranial window expressing ChRmine and GCaMP6m. 16 stimulation events were performed for single-cell activation and pair-of-cells activation. All cells had an increase in calcium activity upon stimulation.

Scanning Photomanipulation

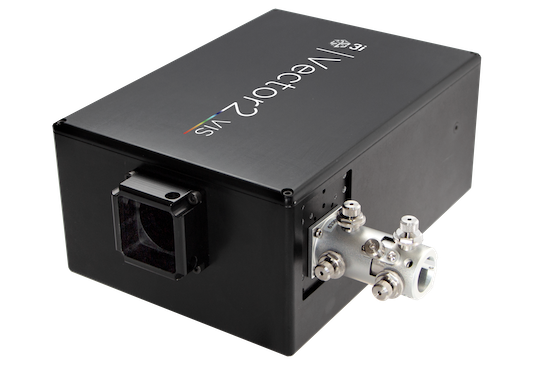

Vector2 is a diffraction-limited high speed X,Y scanner that accepts lasers from UV to IR. Vector allows interactive examination of living specimens with a rapid single-point seek time of 0.3ms and fast ROI scanning (1500 lines per second). Common uses of Vector2 include FRAP, photoactivation, photoablation and uncaging. mSwitcher enables simultaneous use with Spinning Disk Confocal for advanced multi-modal methods. Vector2 is also designed for high-speed scanning imaging techniques such as multiphoton imaging or laser scanning confocal microscopy

photobleaching

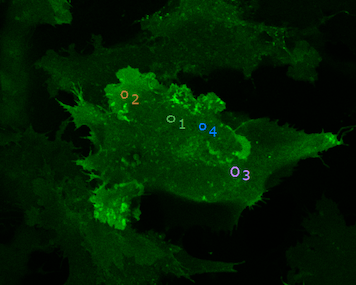

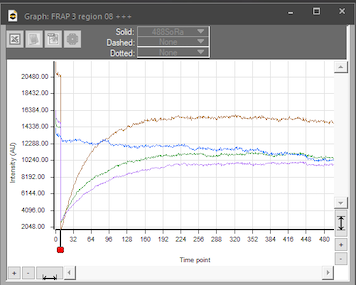

Mammalian cell with membrane labeled in green before bleaching and FRAP curve in SlideBook.

Laser Ablation System

Ablate! uses an attenuatable 355nm or 532nm pulse laser (>60µJ pulses at 200Hz) to inflict localized damage to a diffraction-limited spot in intracellular structures for precise laser ablation and laser wounding. Full software control with SlideBook features automated intensity control and allows users to define one or more regions of interest as single diffraction limited spots or as user-defined shapes.

Photoablation

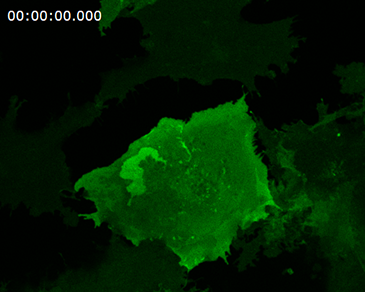

Mammalian cell with membrane labeled in green before (left) and after ablation (right)

Holographic Photomanipulation

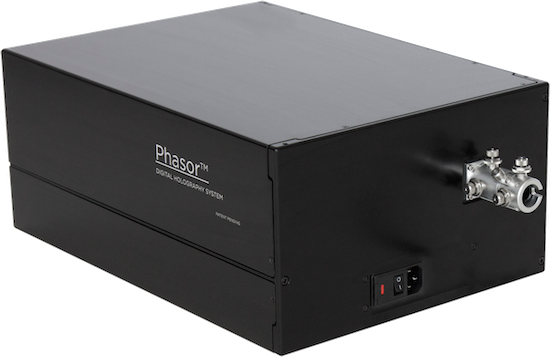

Phasor 1-Photon uses a phase-only spatial light modulator (SLM) designed specifically for patterned and 3D point photomanipulation in optical microscopy. Phasor is compact and modular, allowing direct attachment to a microscope imaging port. Illumination is provided by LaserStack through a fiber optic coupling. Phasor is controlled by SlideBook software to manage region specification, hologram generation, experimentally synchronized optical path switching and excitation light gating. This state of the art control enables sophisticated experiment design incorporating pattern photomanipulation, including FRAP, photoactivation, photoconversion, and photostimulation.

3D Photostimulation

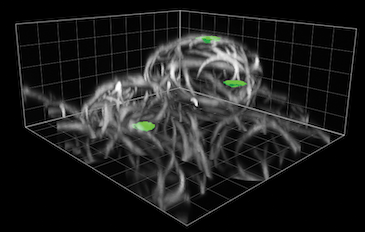

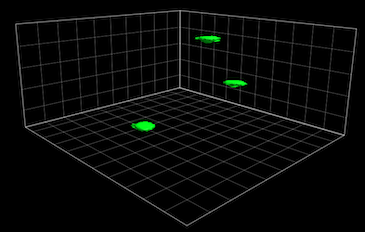

3D illumination pattern (left) applied to a 3D specimen (right) to stimulate multiple regions simultaneously.

Contact Us









    SALES

    Phone: +1 (303)-607-9429 x1
    Email: sales@intelligent-imaging.com

    Profile on Ariba Discovery

    SUPPORT

    Phone: +1 (303)-607-9429 x2
    Email: support@intelligent-imaging.com

    Download 3i QuickSupport

    Phasor

    3i offers the first commercial implementation of a phase-only spatial light modulator (SLM) designed specifically for patterned and 3D point photomanipulation in optical microscopy. Phasor is compact and modular, allowing direct attachment to a microscope imaging port. Illumination is provided by the 3i LaserStack™ through a fiber optic coupling.



    Phasor is controlled by 3i’s SlideBook™ software to manage region specification, hologram generation, experimentally synchronized optical path switching and excitation light gating. This state of the art control enables sophisticated experiment design incorporating pattern photomanipulation, including FRAP, photoactivation, photoconversion, and photostimulation.



    Solid state laser illumination from 3i’s LaserStack with the addition of 3i’s FiberSwitcher™ makes it possible to use a single set of lasers for multiple techniques on one system, such as point-scanning photomanipulation, spinning disk confocal imaging, and TIRF illumination. FiberSwitcher’s sub-millisecond change speeds make it possible to design elaborate experiments that utilize a given set of lasers for a combination of imaging techniques at very high speeds.

    Advantages of computer generated holography fluorescence microscopy

    Efficient use of illumination intensity by redirecting a significant portion of the light to regions where photomanipulation is desired.

    Superior optical sectioning for larger regions compared to approaches that use Gaussian beam illumination.

    Different points of stimulation can be focused at different z planes.

    Entire photomanipulation patterns can be axially displaced from the imaging plane of focus.

    Vector

    Vector™ is a diffraction-limited high speed X,Y scanner that accepts lasers from UV to IR. Vector allows interactive examination of living specimens with a rapid single-point seek time of 0.3ms and fast ROI scanning (1500 lines per second). Common uses of Vector include FRAP, photoactivation, photoablation and uncaging. mSwitcher enables simultaneous use with Spinning Disk Confocal for advanced multi-modal methods. Vector is also designed for high-speed scanning imaging techniques such as multiphoton imaging or laser scanning confocal microscopy.

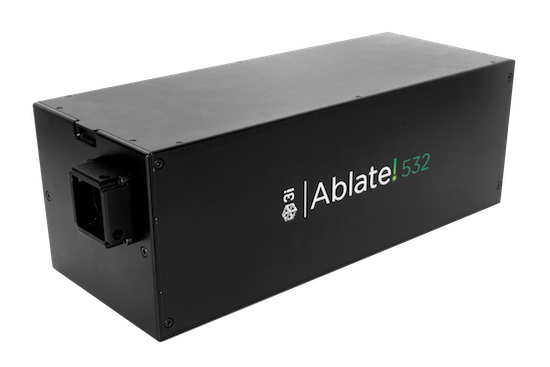

    Ablate!

    Ablate!™ uses an attenuatable 355nm or 532nm pulse laser (>60µJ pulses at 200Hz) to inflict localized damage to a diffraction-limited spot in intracellular structures for precise laser ablation and laser wounding. Full software control with SlideBook features automated intensity control and allows users to define one or more regions of interest as single diffraction limited spots or as user-defined shapes.



    Features:

    355nm or 532nm pulse laser
    Available in fixed-point and motorized versions
    Direct coupling to the microscope for optimal power delivery
    Simultaneous widefield or confocal imaging with notch dichroic filter sets
    Full software control with SlideBook and Photomanipulation module



    Applications:

    Cellular damage
    Tissue damage
    Organelle ablation
    DNA damage
    Vascular tissue damage for laser injury model

    Ablate! photoablation of chromosomes in an anaphase spindle. U2OS cell line (human oseosarcoma) stably expressing mCherry-tubulin (red) and H2B-GFP (blue-green). Two 532nm Ablate! pulses (each ~1.3ns) with a 5ms delay between pulses and Vector movement from position 1 to position 2. Captured on Marianas with CSU-X spinning disk confocal, 1K EMCCD, 63x 1.4NA oil objective, mSwitcher, Ablate! and Vector. Image courtesy of Dr. Marin Barisic, Danish Cancer Society Research Center.
